PMD Mockup

PMD Mockup Manufacturing was founded by several over 15-20 year model composed of experienced senior engineers and senior sales. Executive provider various industrial and medical company’s research and developments projects, prototypes, functional testing fixtures, internal machining resources and low volume production.

Management Concept

We pursuit the principal for customer is always doing the best efforts to idea become real products, offer highly qualities and with on time deliveries within budget, creating new value for the customers’ satisfaction.

Service Range
• Exterior/ Appearance Models/ Prototypes
• Functional Models
• 3D printing
• CNC machining
• Rapid Prototypes
• RP Silicone Molding Tool
• PU Forming Mold
• Vacuum Molding
• Fixture Jig, and various types of the CNC metal processing
• Small amount of production



Service Industry
• 3C computer related products prototypes
• Household appliance prototypes
• Electronic equipment prototypes
• Medical equipment prototypes
• Sports equipment prototypes
• Transportation appliances such as bicycles, motor  vehicles, industrial materials prototypes
• Stationeries prototypes
• Toys prototypes
• Living and Beauty products prototypes
• Various design and development products prototype

• CAD/CAM
• CNC Machining
• Vacuum Molding
• Rapid Prototype
• Surface Treatment
• Facility Introduction




CAD/CAM


CAD
- AutoCAD
- Pro-Engineer

CAM
- Master CAM

CNC Milling/CNC Machining



PMD’s CNC machining capabilities enable to produce the finest, highly accurate visual design models, full-functional engineering prototypes or master patterns. According to 3D CAD drawings provided by customers into CAM system to generate precise CNC programs, then transfer to a very high-speed CNC machine center to machining, otherwise, is capable to design various fixture for mass production line or measurement equipment.

Vacuum Casting Molding



Using prototype components on silica gel to forms a precise silicone mold, then through vacuum casting equipment, PU plastic raw material filling, derived from the temperature controlled to achieve the purpose of the replicate samples, due to short production runs, so it can be reduced the cost and shorten the production time.

- Each production quantity is about 20 pcs per mold.

- Available material includes PU, PP, ABS, Acrylic, Rubber, and heat resistance or flame resistance …

- Imitated injection such as dual color injection, and metal insert.

*After finished the SLA and CNC prototype, it can be duplicated by vacuum casting equipment for various PU or rubber materials.

Rapid Prototype



Rapid model is an integrated laser scanning system for prototype with high accuracy, complex geometry, which is constructed in layer by UV laser.

SLA laser rapid prototyping system, can quickly scan a sample model in a short time. It generated model easily added up by further finish to produce a smooth surface. The structure is used in many applications, such as concept models and master models.

Finishing / Surface Treatment



Texture Treatment : To make texture products excellent performance and durability, product's surface through chemical or mechanical processing such as anodizing, hair-line texture, spin surface treatment, electroplating, vacuum plating, chrome plating, etching, laser engraving, diamond cutting, metal polishing, mirror process, acrylic dyeing, using the surface treatment even more refined.

Spray printing : Film Pasting, Water transfer printing, also can be painted for flat, glossy, texture, matte leather treatment.

Screen printing : Pad printing and heat transfer printing

Facility Introduction



★ CNC Milling Machine
★ Traditional Milling Machine
★ Turning Machine
★ Sand Blasting Machine
★ Rip Saw
★ Watering Painting Station
★ Drying Trolley Oven
★ 3D Measurement

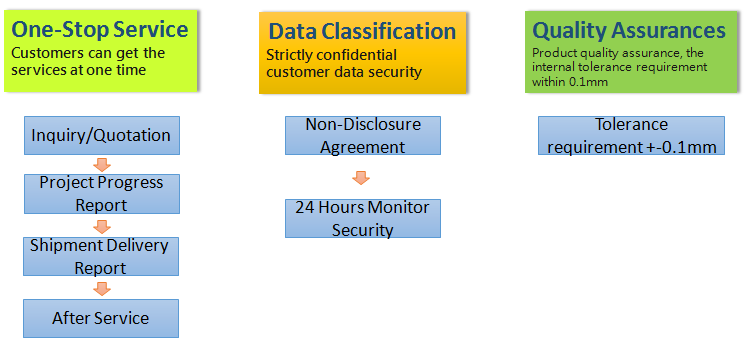

We offer One Stop solution provider for mock up /prototype/model making/low volumes production.

We sincerely welcome you any further questions, and look forward to servicing you in near future.

E-MAIL：pmd@pmdmockup.com
TEL： +886-2-8262-9458
Address：No.7, Ln. 396, Sec. 2, Zhongyang Rd. Tucheng Dist., New Taipei City 23669 ,Taiwan (R.O.C.)
